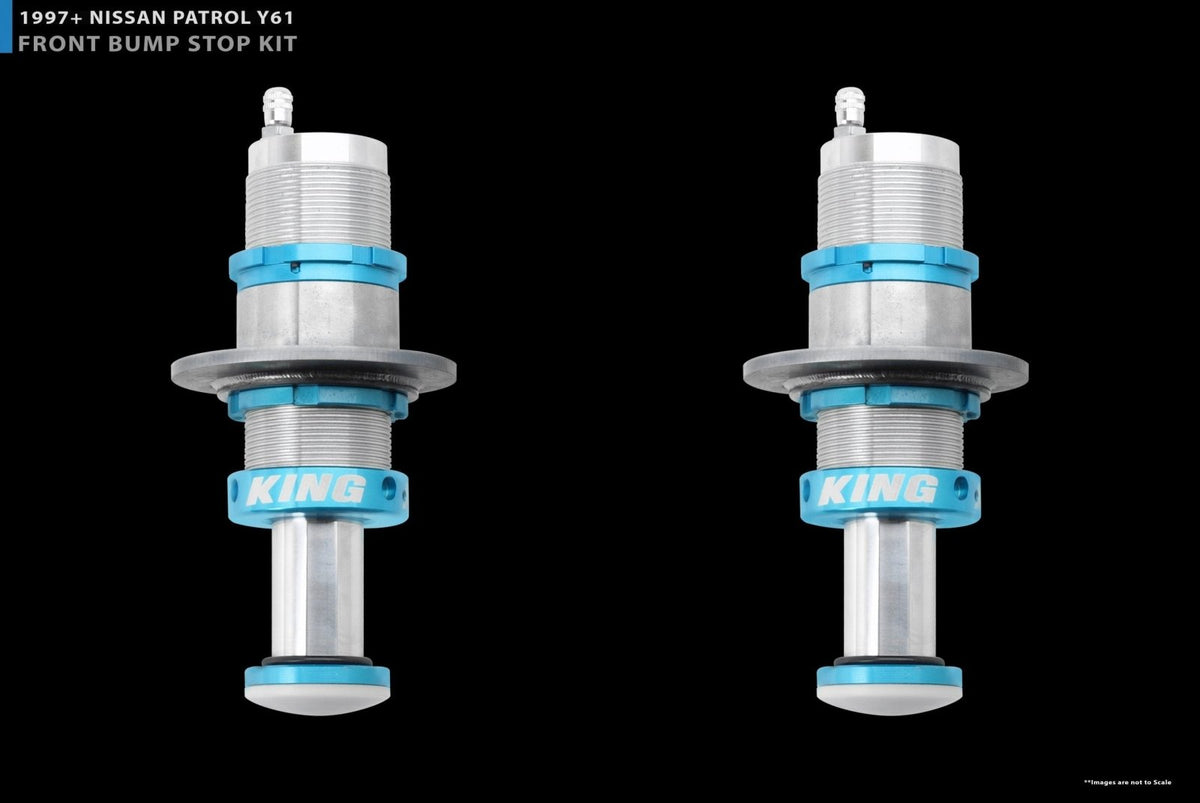

King Shocks Front 2.0 Hydro Bump Stop Kit:

This kit is specifically designed to fit the Y61 Patrol by King Shocks. The mounting plates place the 2.0 hydraulic bump stops in the position of the factory progressive rubber bumps. The 2.0 hydraulic bump stops are threaded allowing vertical adjustment, and thus, allowing you to get the best out of every inch of your suspension.

Included in the Patrol Y61 Front Hydro Bump Kit:

Front Hydro Bump Parts:

• 2 – Bump Stop Mount/Weld Flange (20AB425-115)
• 2 – 2.0 Compact Bump Stops (BS2120)
• 1 – Special Tool – Hole Saw Adaptor (25079-002)

Required Tools

• Floor Jack/Jack Stands
• Metric Wrench/Socket Set
• Welder – Welding Equipment
• Drill & 2-5/16” Hole Saw
• Grinder/Sander

Hydraulic bumpstops are an ideal solution for vehicles that bottom out severely when travelling over rough terrain or whilst heavily loaded. They allow a progressively dampened and controlled bump zone that can be adjusted with both gas pressure and dampening to fine tune to the users needs.

CLICK THE IMAGE BELOW FOR THE FULL Y61 BUMP STOP INSTALL DOCUMENT:

Additional Information:

Vehicle Fitment:
