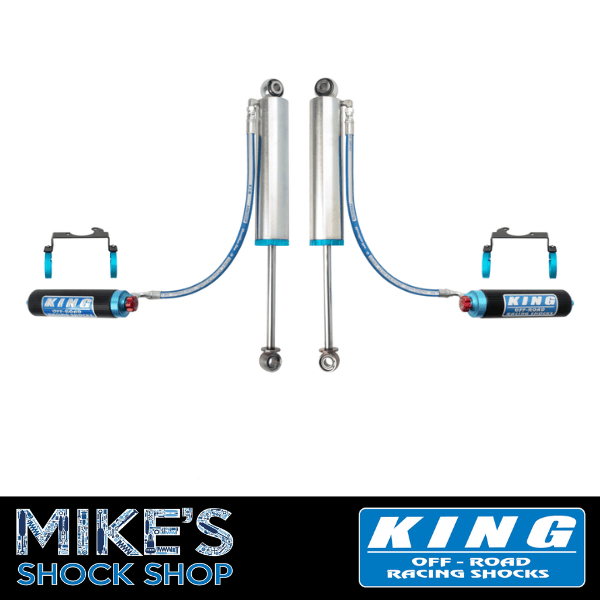

King 3.0 Rear Shocks Nissan Patrol GU/Y61 2" Lift (Remote Res. and Adj. Compression)

Awaiting stock, shipping soon

$3,500.00

Backed by Warranty
Fast, Tracked Shipping
Proven on the Track

King 3.0 OEM Performance Rear Shocks Nissan Patrol GU/Y61 (Remote Res. and Adj. Compression)

Designed Lift: 0" - 2" Inch

King OEM performance kit custom tuned to provide your vehicle with unparalleled levels of performance and ride quality. Each kit has been subjected to punishing real world testing to develop the optimal damping curve and spring rate (if applicable) for your vehicle.

Kit Includes

100% bolt-on performance.
Increased wheel travel.
Large 7/8” hard chromed shafts.
Large 3.0” shock bodies increase fluid capacity for smoother, cooler running shocks.
Factory tuned for optimal ride quality.
Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves for your Patrol.
100% made in the USA from the highest quality materials obtainable.
Built with the same quality and precise tolerances as our high end race shocks.
Easily tuneable and serviceable with simple hand tools.

Finned Reservoir With Optional Compression Adjuster

External finned reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
All new threaded end cap design with new Schrader valve protective cap.
Made from extruded 6061-T6 aluminium
New improved reservoir mounts. No more hose clamps!
Optional Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.

Compression Adjuster

King 2.0, 2.5, 3.0 and 3.5 shocks have an additional level of versatility and performance. King shocks with our Wide Range Compression Adjuster give you the ability to precisely adjust compression from super soft to super firm with the simple twist of a knob. You can soften your ride when just cruising or firm up the compression when hammering rough terrain or carrying additional payload. The Wide Range Compression adjuster is the perfect addition for vehicles that tow or occasionally carry heavy loads or additional passengers. You’ll have the ultimate in performance regardless of your pursuit.

Beautifully anodized aircraft quality billet aluminium construction.
Clearly marked, ergonomic knob design is easy to use even while wearing gloves.
Individual detents make each click of adjustment easy to feel while turning. Each click offers precise compression damping control to further refine your ride quality
Wide range compression adjuster can be retro-fitted to existing King Shocks.

Rear Shock Details

Comp. length (IN)	15.639
Drivetrain	4WD
Ext. Length (IN)	24.956
Gas Pressure (PSI)	150.000
Stroke (IN)	9.317
Position On Vehicle	Rear

King 3.0 Remote Reservoir Features

	1. Lightweight hard anodized 6063 aluminium alloy reservoirs dissipate heat quickly and will not rust due to gas charging contamination.
	2. High quality fittings are mated to Aeroquip high pressure hoses which resist abrasion and kinking
	3. Internally threaded top cap design threads over the shock body to enable maximum piston travel inside the shock body.
	4. 3.0″ Shock cylinders are precision bored to within +/- .001, then honed after cadmium plating to remove build-up for a tight piston seal and optimum valving function.
	5. Coilover shocks are machined with our own truncated thread design for ultimate strength and trouble free spring preload and height adjustments.
	6. Pinch bolt coil adjuster nut offers superior clamping force to retain your coil preload adjustments without crushing the threads like set screw style collars do.
	7. The heat treated 6061 aluminium alloy piston has our highly developed port configurations that contribute to the unique damping performance and famous King ride quality.
	8. Wear bands are made from a Rulon composite that offers incredible wear resistance, low deformation under load and high compressive strength. Overlapping end design enhances sealing.
	9. Large 3/4″ or 7/8″ diameter shafts have a minimum tensile strength of 100,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
	10. High strength rod end designed for proper clearance on your application. Steel Teflon lined spherical bearings for smooth articulation and long life with no metal to metal contact.
	11. Aluminium components and vehicle specific mounts are machined from aircraft quality billet. Front and rear kits all include all necessary vehicle specific mounting brackets and hardware along with detailed installation instructions. Technical support, if needed, is only a phone call or email away.

NOTE: Not all features available on all shocks/struts, please contact us for further details at support@mikesshocks.com

Vehicle Fitment

Make	Model	Year
Nissan	Patrol GU/Y61	1997 - 2025

King Shock Installation Guide for Y61 Patrol - 33001-213A
