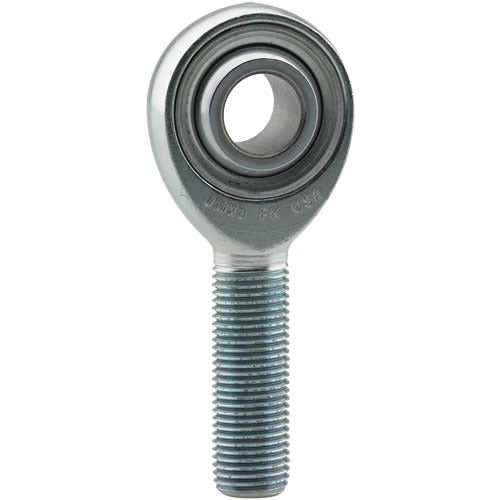

FK RSMX10-8T PTFE Lined 3/4-16 Right Hand Thread Rod End 1/2″ ID:

FK HEAVY DUTY SHANK (RSMX) Rod Ends:

The FK Heavy Duty Shank precision series Rod Ends (RSMX-T) are high quality PTFE lined Rod Ends (part numbers suffix “T”). The rod ends are a 3-peice construction designed with strength in mind. Male rod end load ratings are based on rod ends with no lubrication fittings.

RSMX series Rod Ends have a ball made of hard chrome plated 52100 Steel, with Rc 56 MIN hardness. The race is made of a heat treated, chromate treated and zinc coated, alloy steel.

These bearings are well suited to race applications.

RSMX10-8T Critical Dimensions:

• Outside diameter – 1.75″
• Internal diameter – 1/2″
• Male Right Hand Thread – 3/4-16
