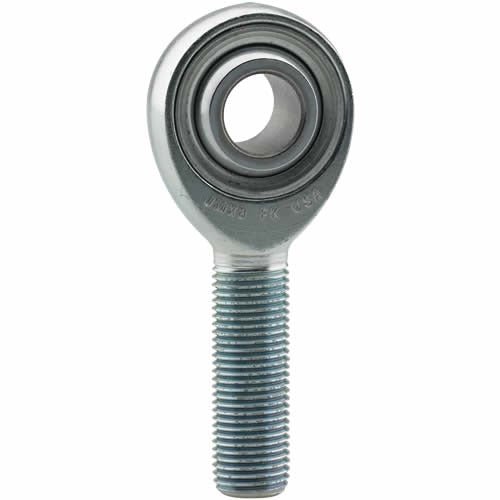

FK JMX12T PTFE Lined 3/4-16 Right Hand Thread Rod End 3/4″ ID:

FK Precision Series (JMX) Rod Ends:

The FK precision series Rod Ends (JMX-T) are high quality PTFE lined Rod Ends (part numbers suffix “T”). The rod ends are a 3-peice construction designed with strength in mind. Male rod end load ratings are based on rod ends with no lubrication fittings.

JMX series Rod Ends have a ball made of hard chrome plated 52100 Steel, with Rc 56 MIN hardness. The race is made of a heat treated, chromate treated and zinc coated, alloy steel.

These bearings are well suited to race applications.

JMX12T Critical Dimensions:

• Outside diameter – 1.75″
• Internal diameter – 3/4“
• Male Right hand Thread – 3/4-16
