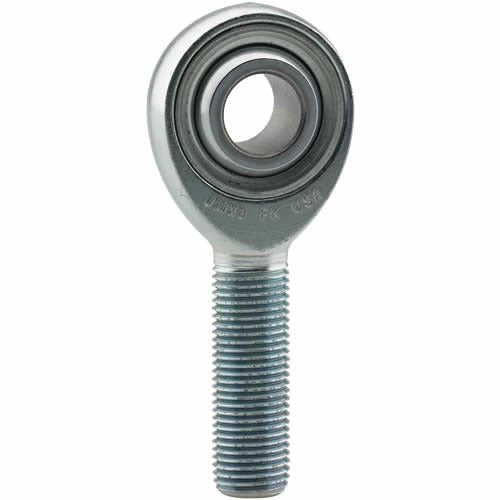

FK JMX10T PTFE Lined 5/8-18 Right Hand Thread Rod End 5/8″ ID:

FK Precision Series (JMX) Rod Ends:

The FK precision series Rod Ends (JMX-T) are high quality PTFE lined Rod Ends (part numbers suffix “T”). The rod ends are a 3-peice construction designed with strength in mind. Male rod end load ratings are based on rod ends with no lubrication fittings.

JMX series Rod Ends have a ball made of hard chrome plated 52100 Steel, with Rc 56 MIN hardness. The race is made of a heat treated, chromate treated and zinc coated, alloy steel.

These bearings are well suited to race applications.

JMX10T Critical Dimensions:

• Outside diameter – 1 1/2″
• Internal diameter – 5/8″
• Male Right hand Thread – 5/8-18
