Description

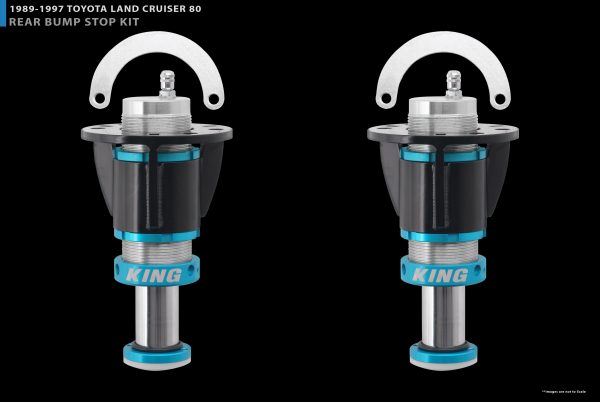

King Shocks 2.0 Hydraulic Rear Bump Stop Kit:

This kit is specifically designed to fit the 80 Series LandCruiser by King Shocks. The bump stop mounts place the 2.0 hydraulic bump stops in the position of the factory progressive rubber bumps. The 2.0 hydraulic bump stops are threaded allowing vertical adjustment, and thus, allowing you to get the best out of every inch of your suspension.

Included in the LC80 Hydro Bump Kit:

Rear Parts

• 2 – Rear Bump Stop Brackets (20AB424-117)
• 2 – Rear Bump Stop Bracket Nut Plates (20AB424-019)
• 2 – 2.0 Compact Bump Stops (BS2120)
• 4 – 3/8 x 1” Bolts (CB4701)
• 4 – 3/8 SAE Washers (CW1701)

Required Tools

• Floor Jack/Jack Stands
• Metric Wrench/Socket Set
• Standard Wrench/Socket Set
• Drill and 2 1⁄4” Hole Saw

Hydraulic bumpstops are an ideal solution for vehicles that bottom out severely when travelling over rough terrain or whilst heavily loaded. They allow a progressively dampened and controlled bump zone that can be adjusted with both gas pressure and dampening to fine tune to the users needs.

HYDRO BUMP INSTALLATION DOCUMENTS:

INSTALLATION OF REAR LC80 HYDRO BUMP KIT
