The Kit contains:

• Assembled King 2.5″ diameter Remote Reservoir front struts with matched coils.

• King 2.5″ diameter Remote Reservoir rear shocks

Recommended for 2″:

……………………….	Zoom Innovation Rear Springs Contact us to organize  custom springs rates and heights.		CLICK BELOW for more information on Zoom Innovations Rear coil Springs. LC200 Zoom Innovations Rear Coil Springs
	Blackhawk  UCA		CLICK BELOW for more information on the Blackhawk Upper Control Arms. LC200 Blackhawk UCA

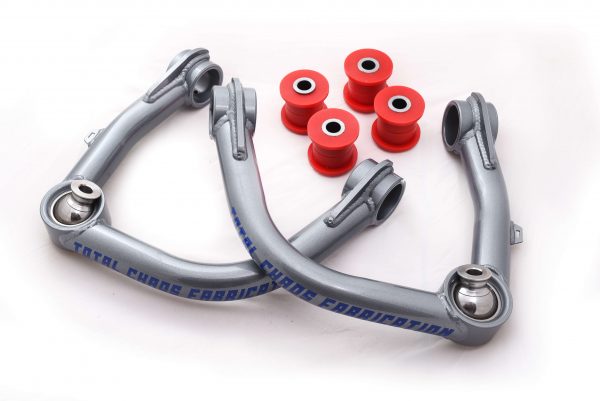

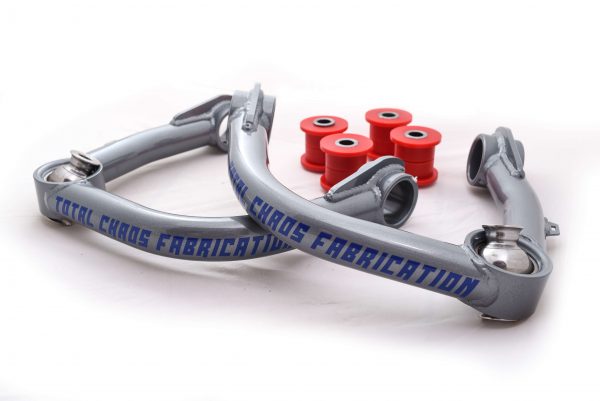

	Total Chaos Fabrication Bolt On Chromoly Tube Upper Control Arm Engineered and fabricated without compromise these are the pinnacle of bolt on performance for your LC200. Handcrafted in the USA from Chromoly tube steel, these castor correcting UCA’s are built to perform in the toughest conditions.		CLICK BELOW for more information on Total Chaos Fabrication’s Bolt on Upper Control Arms LC200 Total Chaos Fabrication Performance UCA

Recommended extras for 3″:

• • • Roadsafe Diff Drop

    • Adjustable Panhard Rod

CUSTOMER FOOTAGE:

King 2.5 Remote Reservoir Features:

	1. Lightweight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly.		7. The heat treated 6061 aluminum alloy piston has our highly developed port configurations that contribute to the unique damping performance and famous King ride quality.
	2. High quality fittings are mated to Aeroquip high pressure hoses which resist abrasion and kinking.		8. Wear bands are made from a Rulon composite that offers incredible wear resistance, low deformation under load and high compressive strength. Overlapping end design enhances sealing.
	3. Internally threaded top cap design threads over the shock body to enable maximum piston travel inside the shock body.		9. Large 3/4″ or 7/8″ diameter shafts have a minimum tensile strength of 100,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
	4. 2.5″ Shock cylinders are precision bored, cadmium plated and honed to remove buildup for a tight piston seal and optimum valving function.		10. High strength rod end designed for proper clearance on your application. Steel Teflon lined spherical bearings for smooth articulation and long life with no metal to metal contact.
	5. Coilover shocks are machined with our own truncated thread design for ultimate strength and trouble free spring preload and height adjustments.		11. Aluminum components and vehicle specific mounts are machined from aircraft quality billet. Front and rear kits all include all necessary vehicle specific mounting brackets and hardware along with detailed installation instructions. Technical support, if needed, is only a phone call or email away.
	6. Pinch bolt coil adjuster nut offers superior clamping force to retain your coil preload adjustments without crushing the threads like set screw style collars do.

NOTE: Not all features are available on all shocks/struts, please contact us for further details

Nothing Rides Like a King:

King’s new line of Original equipment manufacturer, (OEM), shock upgrade kits provide a bolt on suspension system that elevates your on and off-road performance to unmatched levels.  Each kit has been subjected to punishing real world testing to develop the optimal damping curves and spring rates for your vehicle. Built with the same quality of materials and precise tolerances found on our high end race shocks our OEM upgrade kits enable you to  experience the famous King ride quality on your daily driver or prerunner.

If you have any questions contact us today on [email protected] or place your order online!!!
